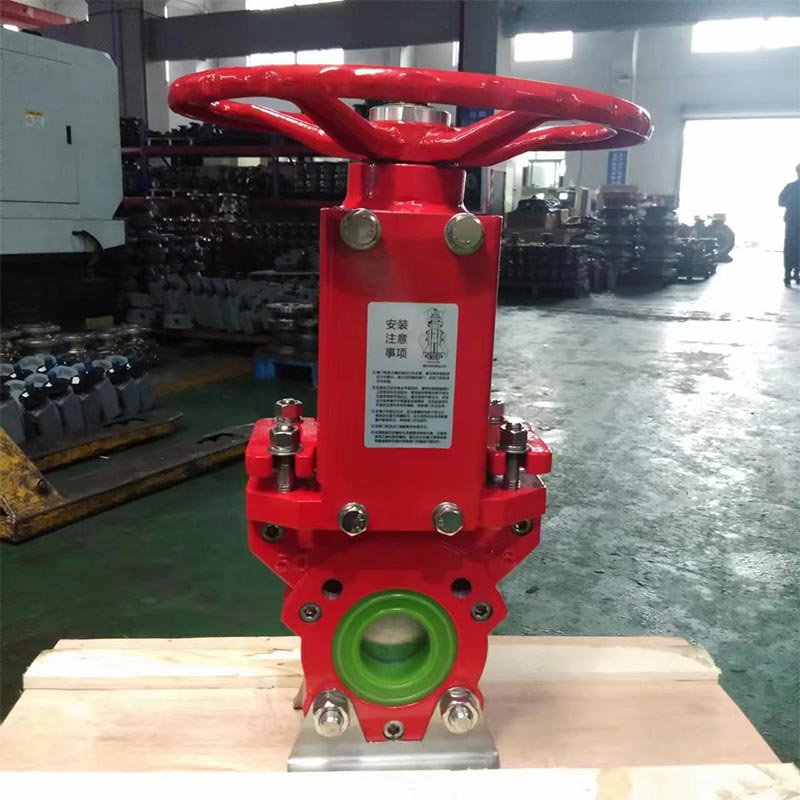

KEBV polyurethane lining slurry knife gate valve is designed for two-piece cast iron body with a replaceable polyurethane lining, which has good wear resistance and prevents slurry build-up in the seat area and keeps the gate path and seat area clear of entrapped particulates. It is suitable for working in the mining industry, and generally for abrasive fluids with different concentrations of solids without discharge into the environment, such as the chemical and wastewater industries.

Product Description

KEBV polyurethane lining slurry knife gate valve is designed for two-piece cast iron body with a replaceable polyurethane lining, which has good wear resistance and prevents slurry build-up in the seat area and keeps the gate path and seat area clear of entrapped particulates. It is suitable  for working in the mining industry, and generally for abrasive fluids with different concentrations of solids without discharge into the environment, such as the chemical and wastewater industries.

TAG:

Polyurethane lining Slurry Valve

PU lining Slurry Knife Gate Valve

Slurry Knife Gate Valve

Mining Slurry Knife Gate Valves

Mining Slurry valves

Rubber sleeve Knife Gate Valve

Paper and Slurry Valve

Technical Specifications of Slurry Knife Gate Valve(Polyurethane lining)

Size Range

DN 50~600mm  NPS 2”-24”(Large diameter on request)

Design Options

100% full-port opening;

Two-piece split cast iron body;

Abrasion resistant & replaceable lining seat;

Non-clogging, bi-directional shut-off;

Polyurethane liner extends over the whole inside of body

Body Material

Ductile iron GGG40/GGG50

Knife Material

SS304, SS304L, SS316, SS316L, SAF2205, SAF2507 etc.

Seat Material

Polyurethane：80°C   (other materials on request)

Applicable Standards

Design & Manufacture: MSS SP-81

Face to Face: MSS SP-81

Flange connection: ASME B 16.5, EN1092-1, AS2129 Table “D”/”E”

(Other connections on customers’ request)

Test: MSS SP-81

Operation

Options

Hand wheel/Bevel Gear/Chain wheel

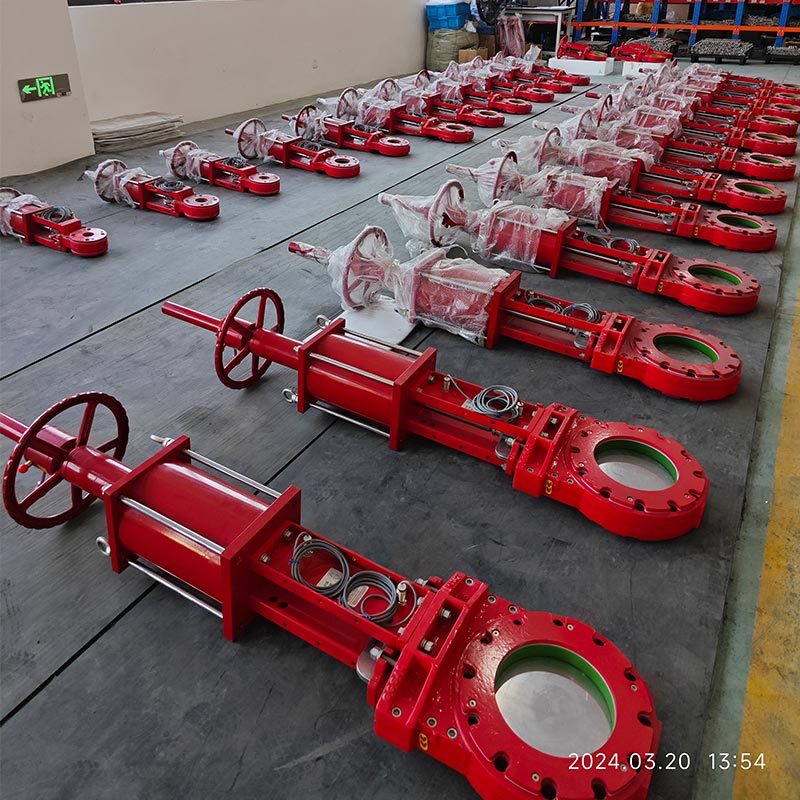

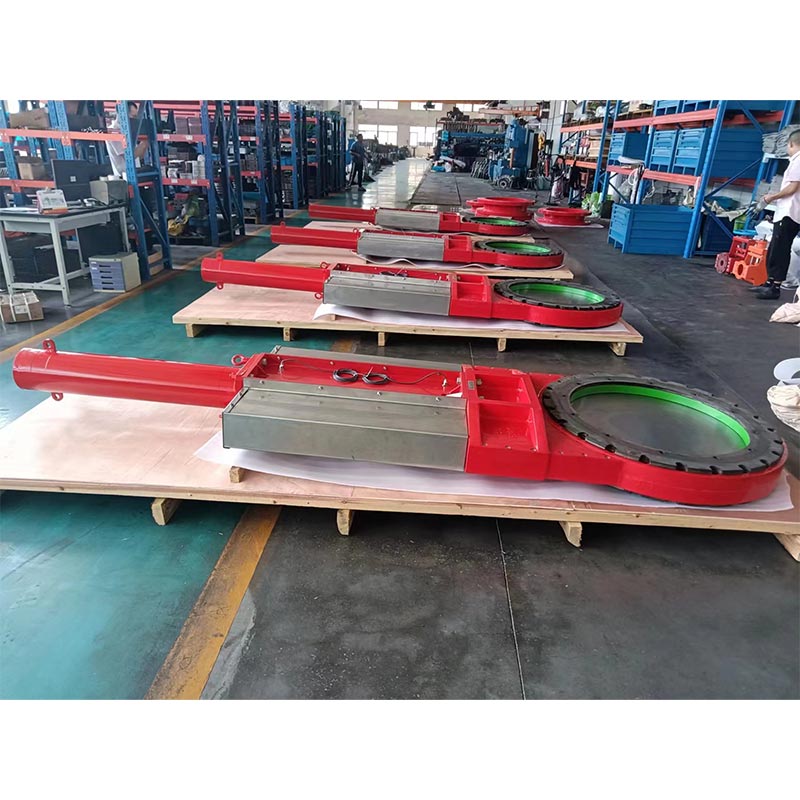

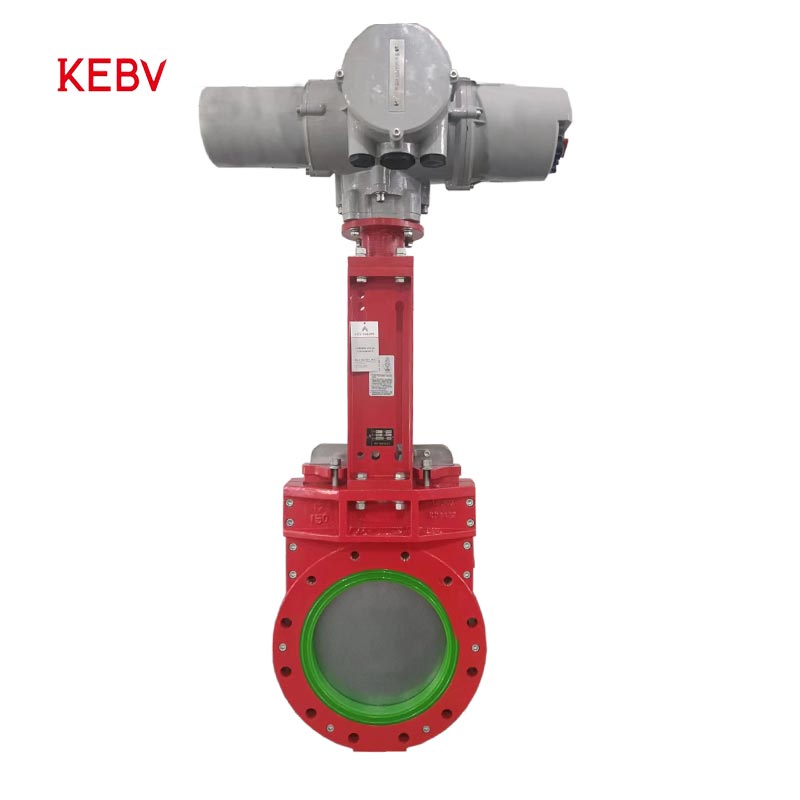

Pneumatic/Electric/Hydraulic actuator

Applications

Mining/Pulp & Paper / Waste Water treatment/Metallurgy

/Petrochemical /Printing & Dying / Pharmacy/ Beverage& Food
