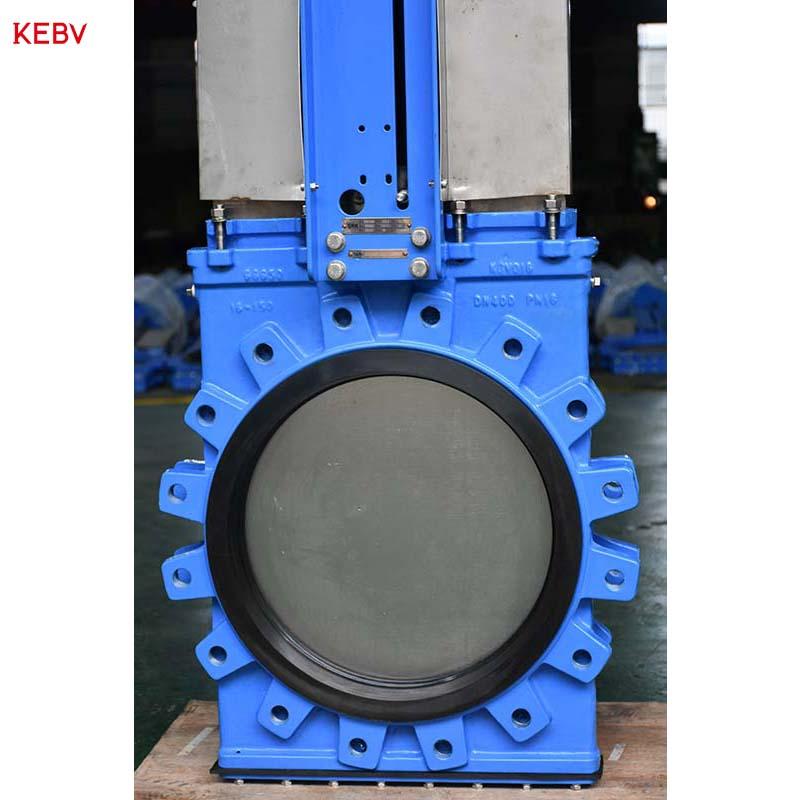

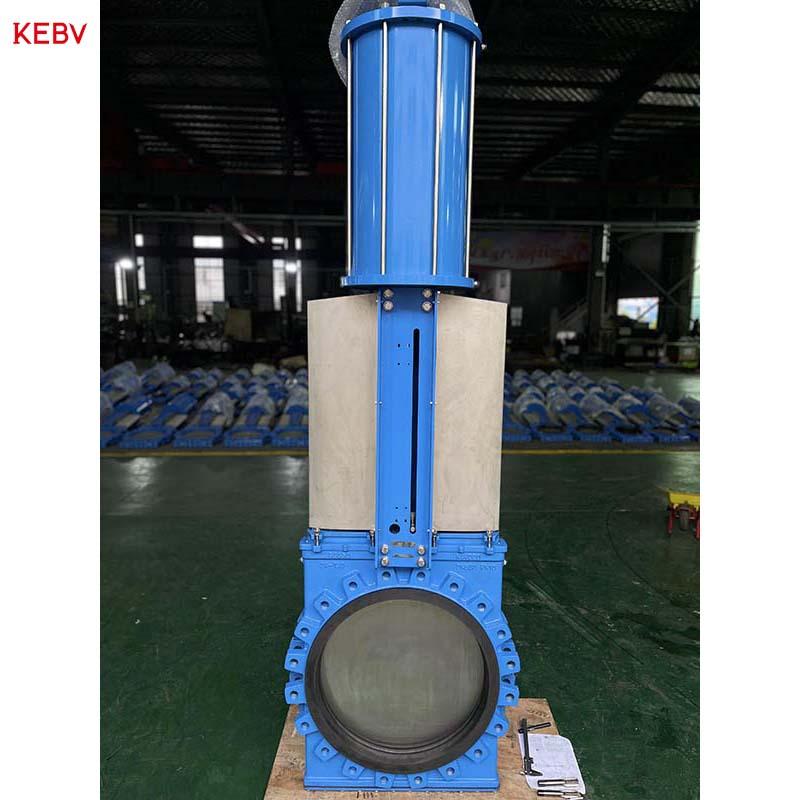

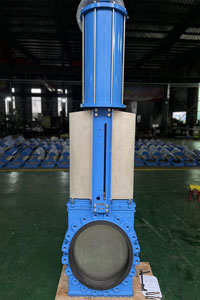

KEBV produced pneumatic slurry knife gate valve DN600, drilling ANSI 150lb, ductile iron body,
rubber sleeve bidirectional seal, normally applicable for mining slurry.
DN150 slurry knife gate valve DN150, manual operation.

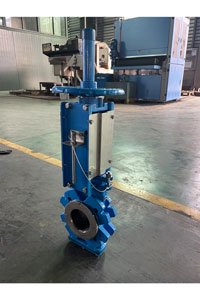

Slurry Knife Gate Valve DN80 with Load Distribution Ring SS304 and Locking Device design.

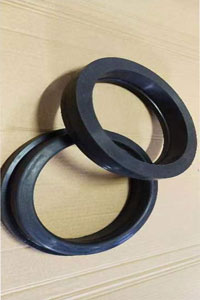

Replaceable sleeve seats for slurry knife gate valves.
KEBV Rubber sleeve slurry knife gate valve is designed for one piece casting body with drop-tight seal and for different slurry applications,
which prevents slurry build-up in the seat area and keeps the gate path and seat area clear of entrapped particulates.
|
Technical Specifications of Slurry Knife Gate Valve(One-piece body type) |
|
|
Size Range |
DN 50~600mm NPS 2”-24”(Large diameter on request) |
|
Design Options |
100% full-port opening; One piece casting body type; Abrasion resistant replaceable sleeves; Drop-tight, bi-directional shut off; Eliminates seat cavity which prevents slurry build up |
|
Body Material |
Ductile iron GGG40/GGG50 |
|
Knife Material |
SS304, SS304L, SS316, SS316L, SAF2205, SAF2507 etc. |
|
Seat Material |
Nature Rubber：70°C (other materials on request) |
|
Applicable Standards |
Design & Manufacture: MSS SP-81 Face to Face: MSS SP-81 Flange connection: ASME B 16.5, EN1092-1, AS2129 Table “D”/”E” (Other connections on customers’ request) Test: MSS SP-81 |
|
Operation Options |
Hand wheel/Bevel Gear/Chain wheel Pneumatic/Electric/Hydraulic actuator |
|
Applications |
Mining/Pulp & Paper / Waste Water treatment/Metallurgy /Petrochemical /Printing & Dying / Pharmacy/ Beverage& Food |
