Slurry Knife Gate Valve with Deflection Cone
Slurry Knife Gate Valve with Deflection Cone
Slurry Knife Gate Valve with Deflection Cone
Slurry Knife Gate Valve with Deflection Cone
Slurry Knife Gate Valve with Deflection Cone
Slurry Knife Gate Valve with Deflection Cone
Slurry Knife Gate Valve with Deflection Cone
Slurry Knife Gate Valve with Deflection Cone

Slurry Knife Gate Valve with Deflection Cone

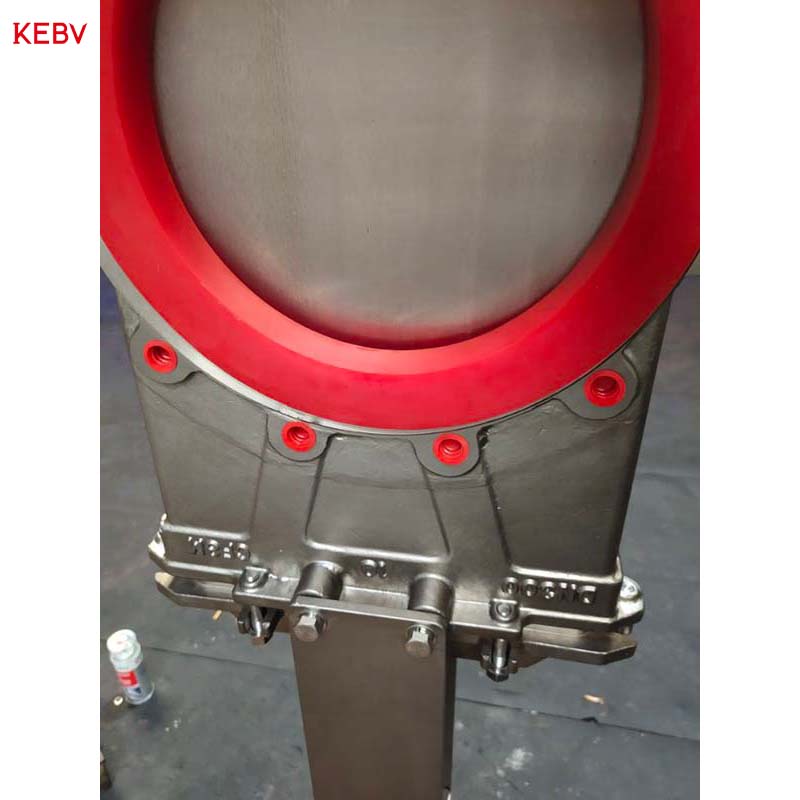

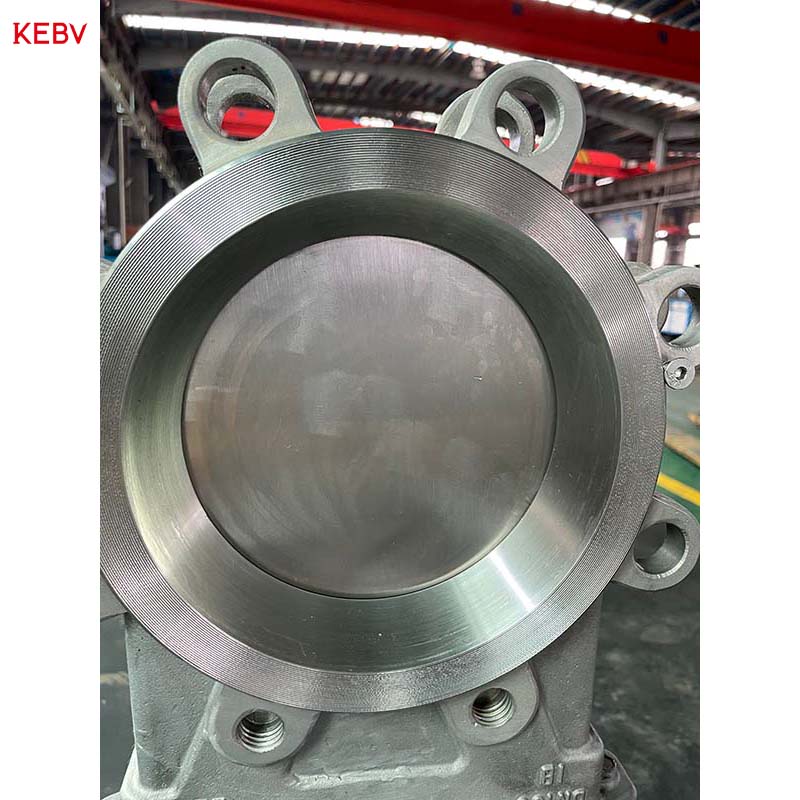

KEBV Unidirectional knife gate valves have a raised seat that faces the flow when the valve is open. It can cause erosive damage of the seat when highly erosive media such as mining slurry are being handled. To provide protection to the seat in such situations, deflection cones are generally used. The main materials include polyurethane and stainless steel, polyurethane is more popular due to lower cost.
Polyurethane Deflection Cone is provided to pro-long valve life and to protect the valve from wear and tear. It is easily replaceable and is less expensive to replace than the entire valve. They are used in ash handling systems, cyclone feeds and discharge, pump box drains and dust collection systems. Polyurethane Deflection Cones are light in weight and are corrosion resistant.

Place of Origin: China
Brand Name: KEBV (OEM available)
Model Number: 1.82
Certification: PED/CE, API6D, ISO9001

Product Description

KEBV Unidirectional knife gate valves have a raised seat that faces the flow when the valve is open. It can cause erosive damage of the seat when highly erosive media such as mining slurry are being handled.

To provide protection to the seat in such situations, deflection cones are generally used. The main materials include polyurethane and stainless steel, polyurethane is more popular due to lower cost.


Polyurethane or stainless steel deflection cone is provided to pro-long valve life and to protect the valve from wear and tear. It is easily replaceable and is less expensive to replace than the entire valve.

They are used in ash handling systems, cyclone feeds and discharge, pump box drains and dust collection systems. Polyurethane Deflection Cones are light in weight and are corrosion resistant.

Technical Specifications of Slurry Knife Gate Valve with Deflection Cone

Size Range

DN 50~600mm  NPS 2”-24”(Large diameter on request)

Design Options

Unidirectional seal;

Deflection cone at inlet port and easily replaceable;

Provide protection to the seat and Pro-long seat life.

Body Material

Ductile iron, WCB or stainless steel

Knife Material

SS304, SS304L, SS316, SS316L, SAF2205 or other requested

Seat Material

NBR：80°C    EPDM: 120°C   PTFE: 150°C  Viton/FKM: 180°C

Metal seat: 300°C

Deflection Cone

Polyurethane(PU): 100°C;   Stainless steel: 300°C

Applicable Standards

Design & Manufacture: MSS SP-81

Face to Face: MSS SP-81

Flange connection: ASME B 16.5, EN1092-1, BS “D”/”E”

(Other connections on customers’ request)

Test: MSS SP-81

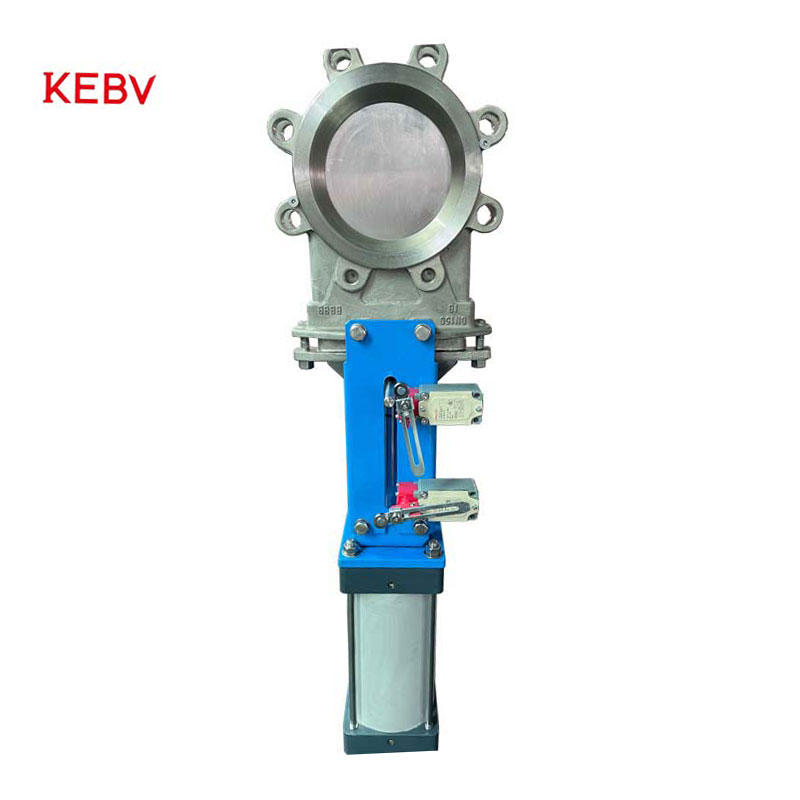

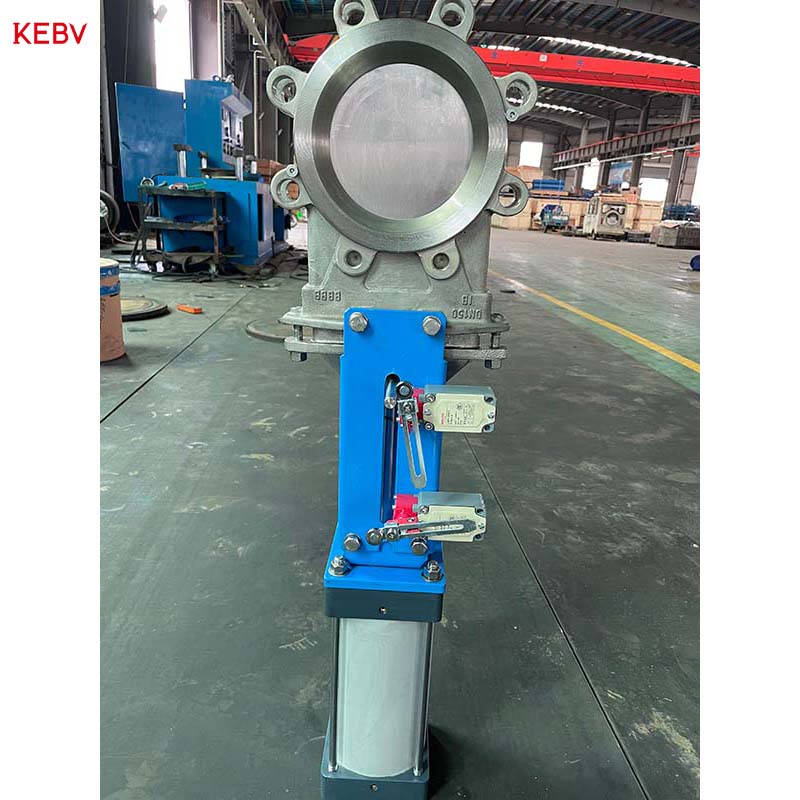

Operation

Options

Handwheel/Bevel Gear/Chain wheel

Pneumatic/Hydraulic/Electric actuator

Applications

Pulp & Slurry / Mining/ cyclone feeds and discharge etc.
