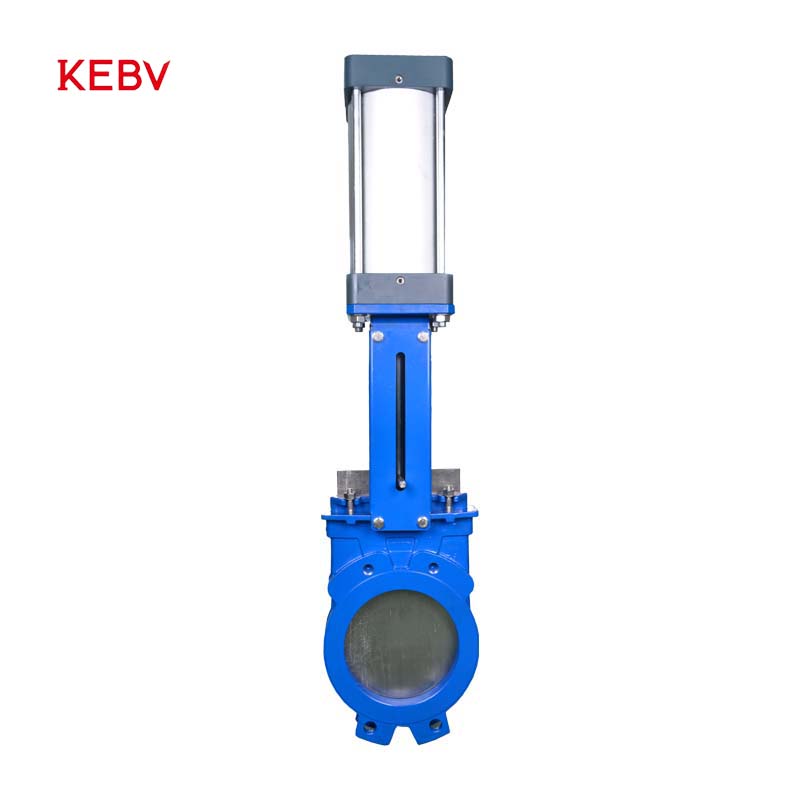

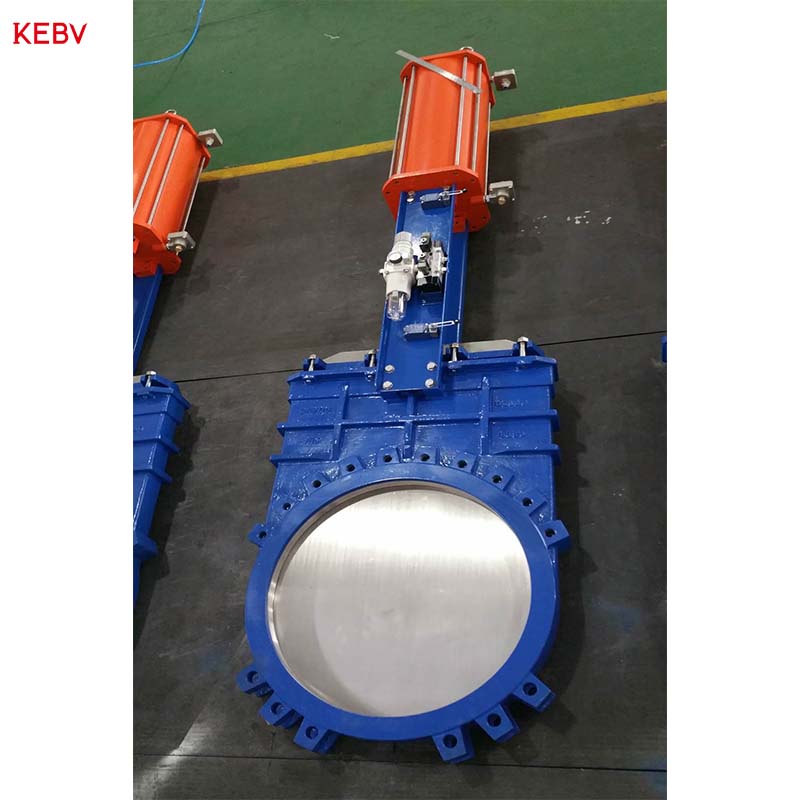

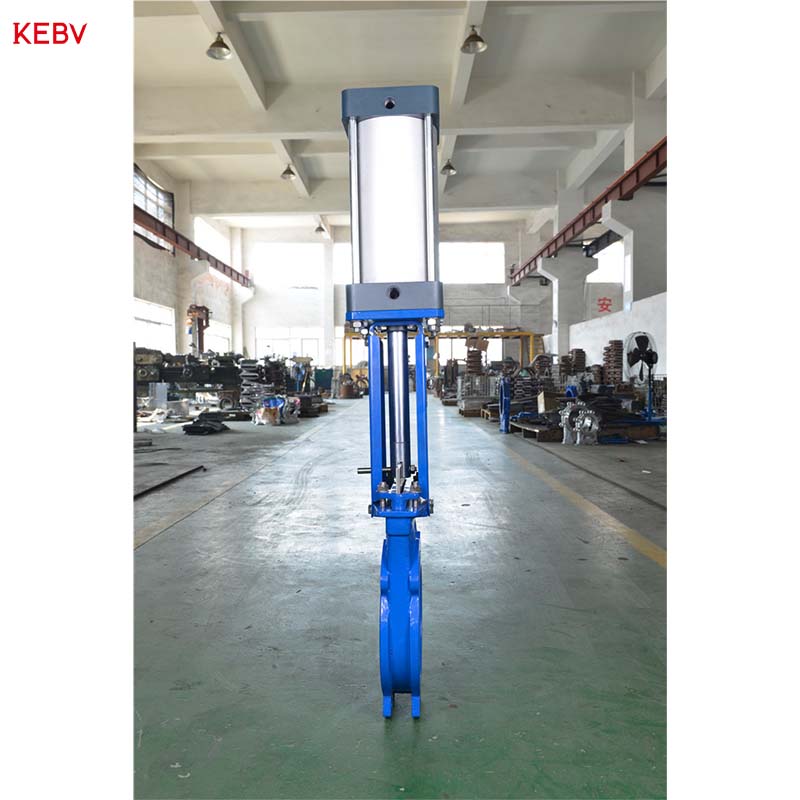

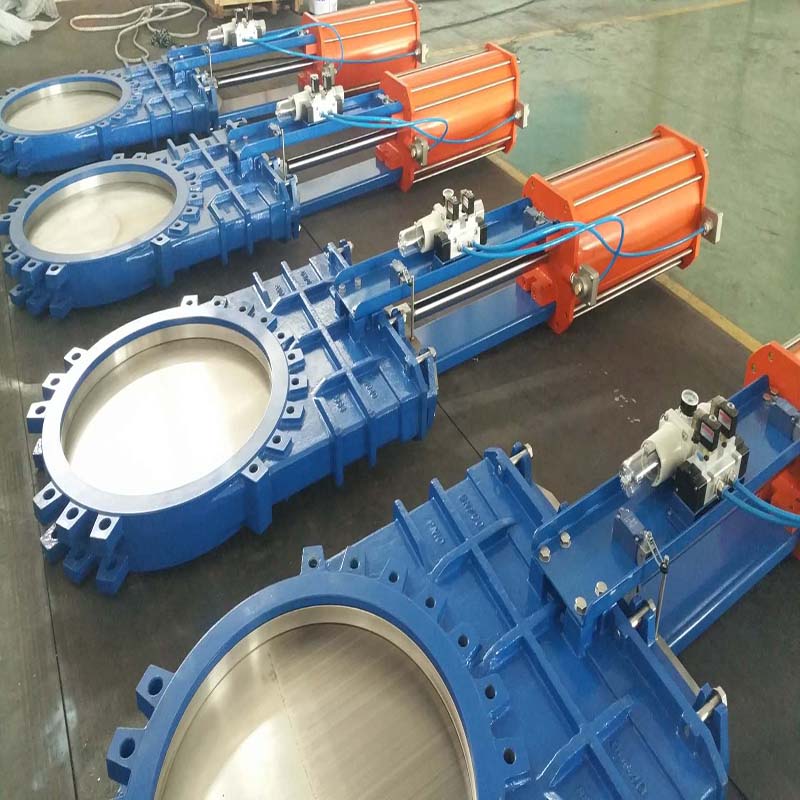

Ductile iron Wafer Knife Gate Valve
Ductile iron Wafer Knife Gate Valve
Ductile iron Wafer Knife Gate Valve
Ductile iron Wafer Knife Gate Valve
Ductile iron Wafer Knife Gate Valve
Ductile iron Wafer Knife Gate Valve
Ductile iron Wafer Knife Gate Valve
Ductile iron Wafer Knife Gate Valve
Ductile iron Wafer Knife Gate Valve
Ductile iron Wafer Knife Gate Valve

Ductile iron Wafer Knife Gate Valve

KEBV knife gate valves are available in various designs, one-piece body and two-piece bodies, wafer, lug and flange connection, rising stem and non-rising stem, unidirectional and bidirectional seal, soft seat and metal seat, bonnetless and bonneted designs.

Place of Origin: China
Brand Name: KEBV (OEM available)
Model Number: 1.11
Certification: PED/CE, API6D, ISO9001

Product Description

KEBV knife gate valves are available in various designs, one-piece body and two-piece bodies, wafer, lug and flange connection, rising stem and non-rising stem,

unidirectional and bidirectional seal, soft seat and metal seat, bonnetless and bonneted designs.

Technical Specifications of Ductile iron Wafer Knife Gate Valve

Size Range

DN 50~1200mm  NPS 2”-48”(Large diameter on request)

Design Options

Unidirectional or Bidirectional Seal;

Rising Stem or Non-rising stem

Body Material

GGG40, GGG50

Knife Material

SS304, SS304L, SS316, SS316L, SAF2205, SAF2507

or other requested

Seat Material

NR：70°C  NBR：80°C    EPDM: 120°C   PTFE: 150°C

Viton/FKM: 180°C   Metal seat: SS304/316+Stellite ≥ 200°C

Applicable Standards

Design & Manufacture: MSS SP-81

Face to Face: MSS SP-81/ EN558-1 Series 20

Flange connection: ASME B 16.5, EN1092-1, AS2129 “D”/”E”

(Other connections on customers’ request)

Test: MSS SP-81

Operation

Options

Lever/Handwheel/Bevel Gear/Chainwheel

Pneumatic/Hydraulic/Electric actuator

Applications

Pulp & Paper / Water & Waste Water/Mining/Metallurgy

/Petrochemical /Printing & Dying / Pharmacy/ Beverage& Food
