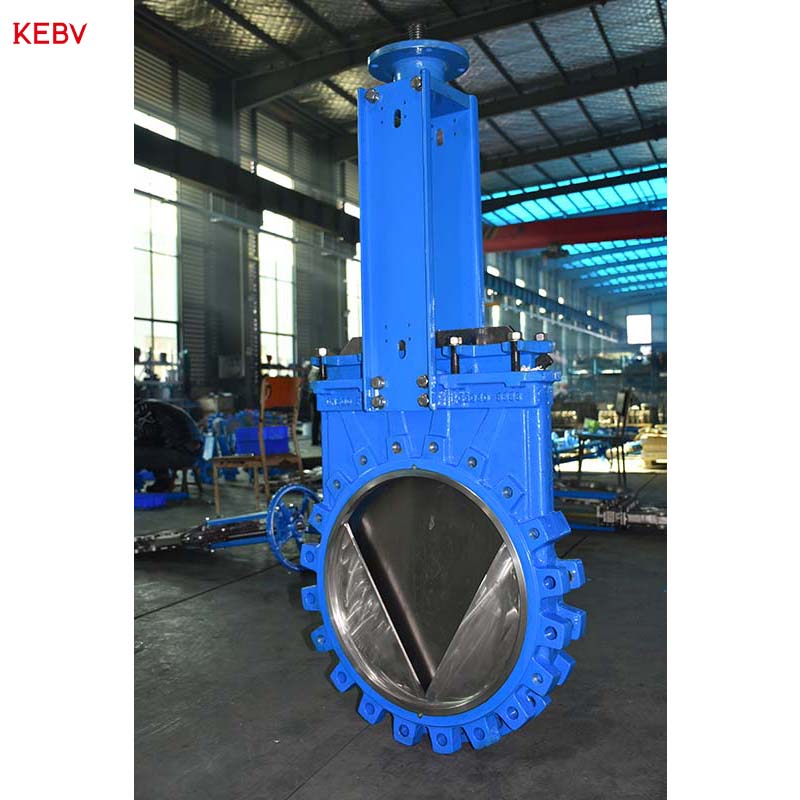

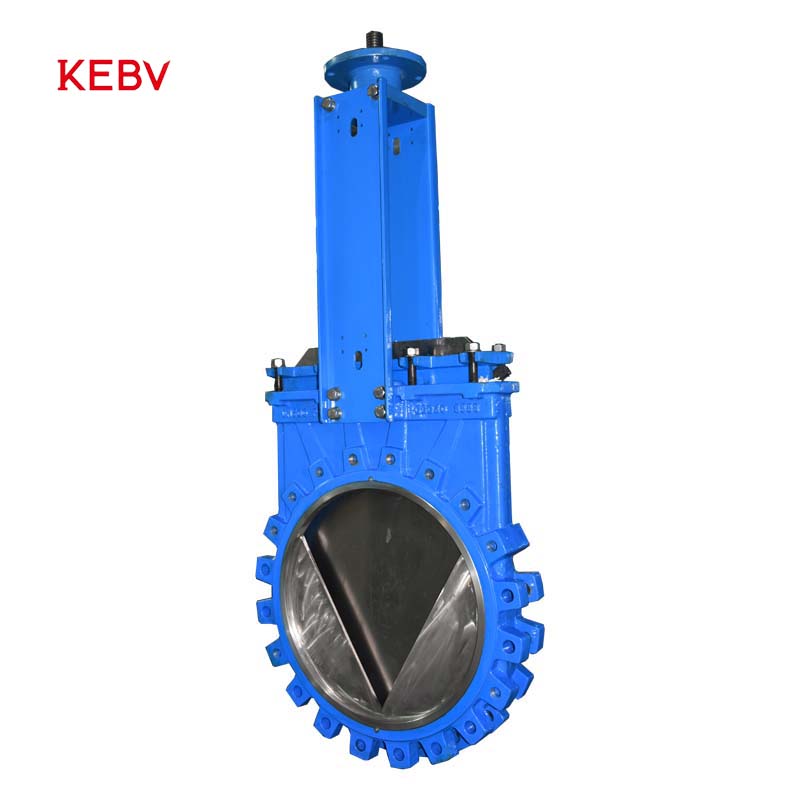

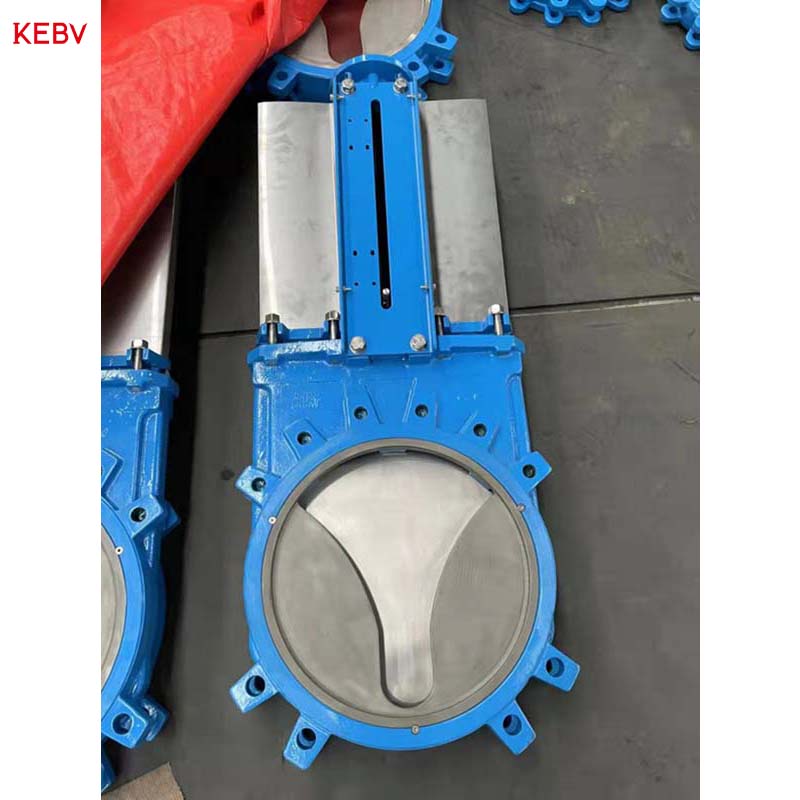

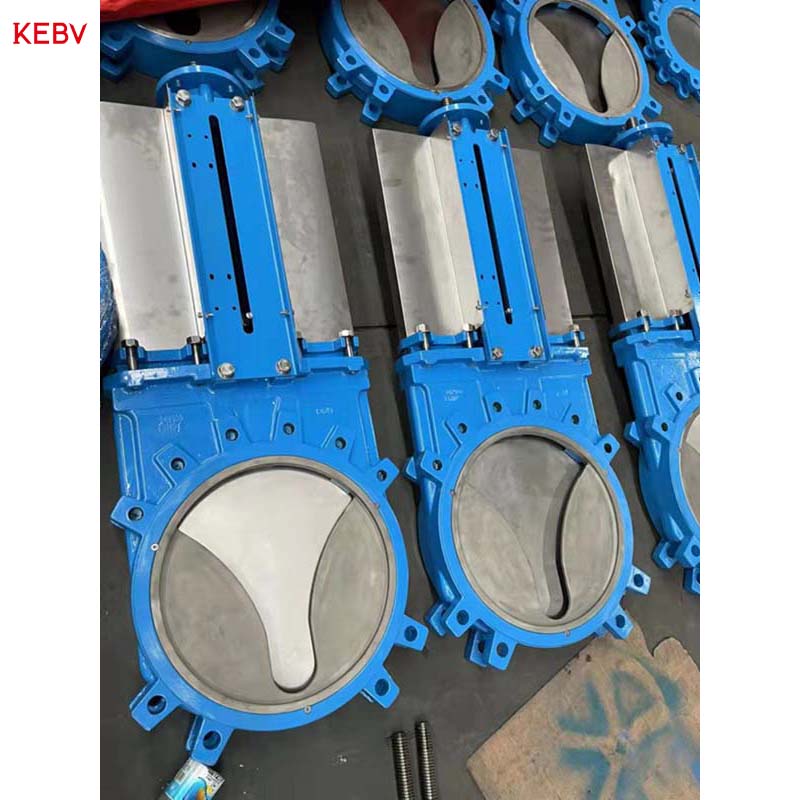

KEBV knife gate valves can be used for modulating service by modifying the round port to a V-notch port or other shapes.
Standard round port valves in the near close position create a crescent shaped opening that can easily be clogged by suspended solids.
The addition of a V-port can greatly reduce the change of clogging while also providing a little more linear flow control characteristics.
A V-Port knife gate design, used to limit and control flow, is offered for throttling applications where a more linear flow characteristic is needed.
Technical Specifications of V Port Knife Gate Valve
Size Range
DN 50~1200mm NPS 2”-48”(Large diameter on request)
Design Options
Unidirectional or Bidirectional Seal;
Rising Stem or Non-rising stem
Body Material
GGG40, GGG50, WCB, CF8, CF8M, CF3, CF3M, A890 4A, A890 5A etc.
Knife Material
SS304, SS304L, SS316, SS316L, SAF2205, SAF2507
or other requested
Seat Material
NR：70°C NBR：80°C EPDM: 120°C PTFE: 150°C
Viton/FKM: 180°C Metal seat: SS304/316+Stellite ≥ 200°C
V-Shape Material
SS304, SS316 or other requested
Applicable Standards
Design & Manufacture: MSS SP-81
Face to Face: MSS SP-81/ EN558-1 Series 20
Flange connection: ASME B 16.5, EN1092-1, AS2129 “D”/”E”
(Other connections on customers’ request)
Test: MSS SP-81
Operation
Options
Lever/Handwheel/Bevel Gear/Chainwheel
Pneumatic/Hydraulic/Electric actuator
Applications
Pulp & Paper / Water & Waste Water/Mining/Metallurgy
/Petrochemical /Printing & Dying / Pharmacy/ Beverage& Food
