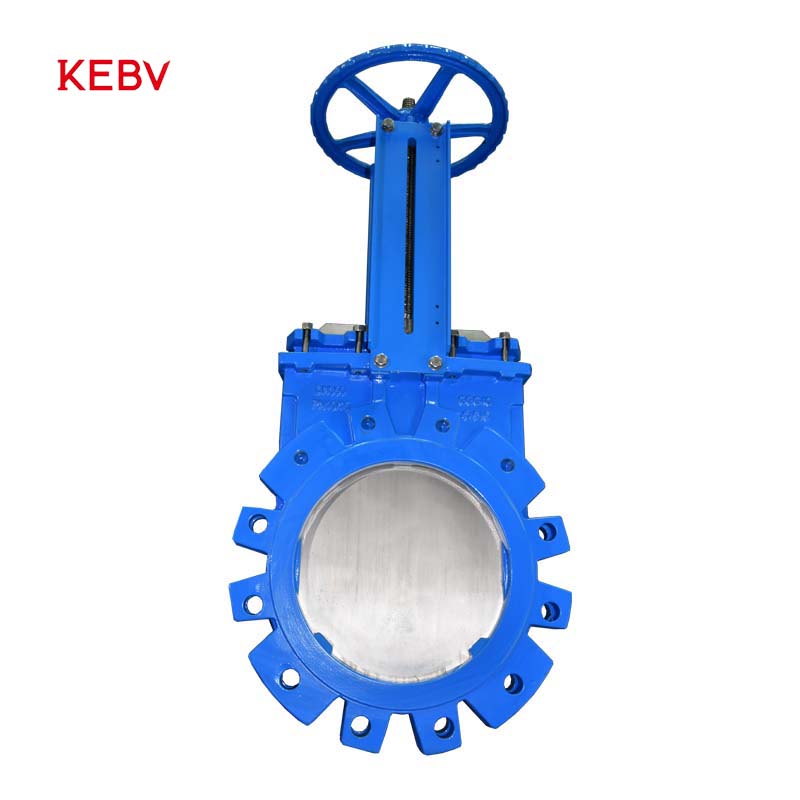

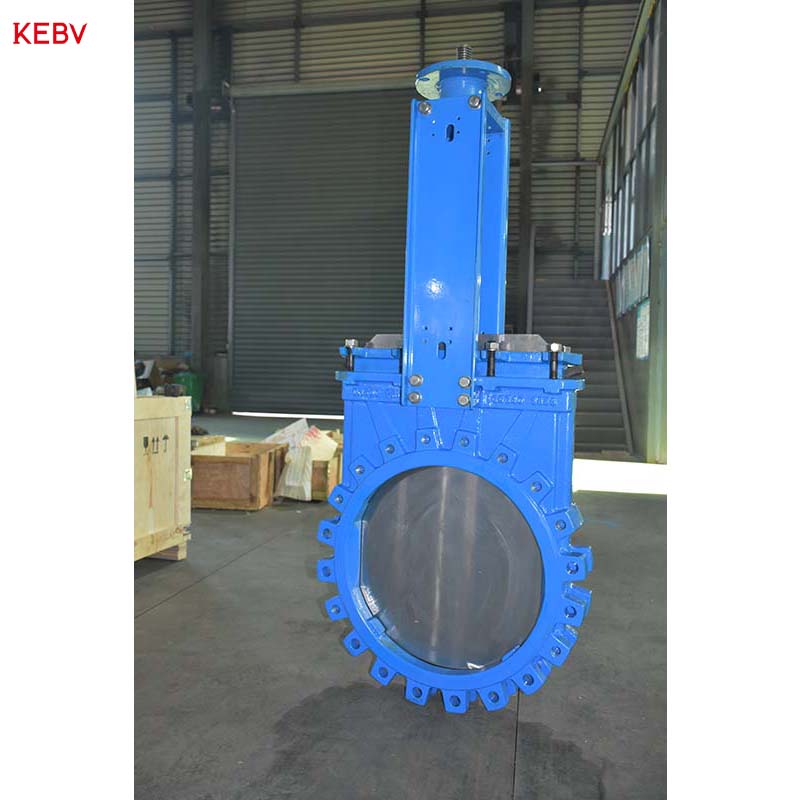

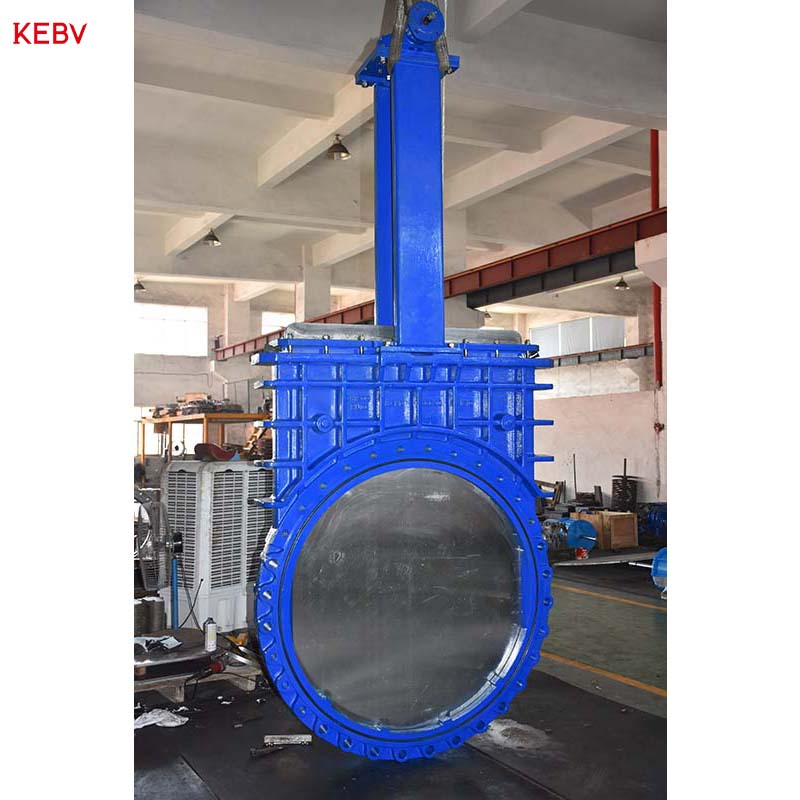

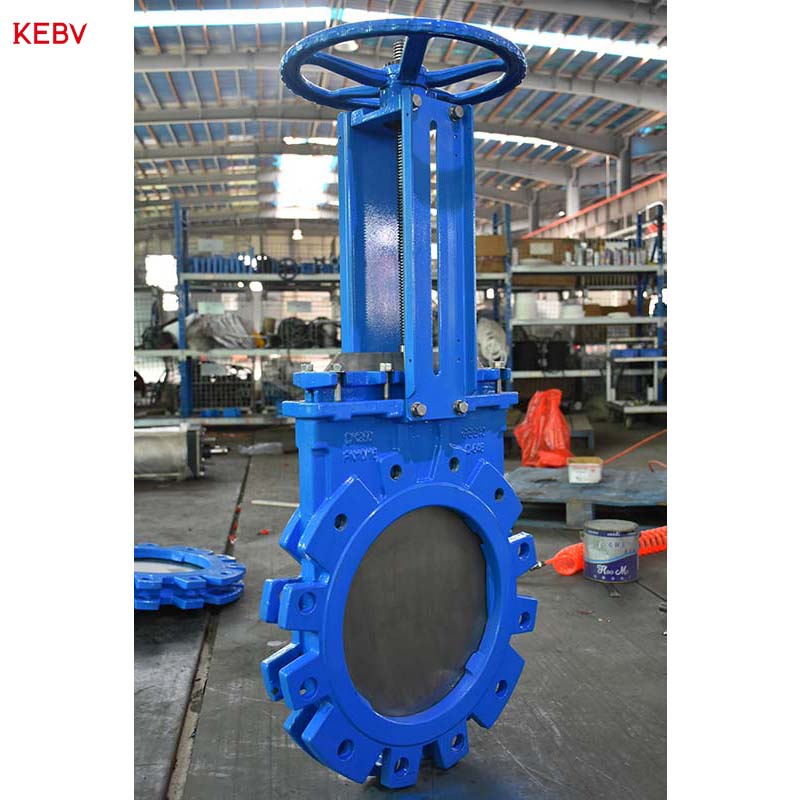

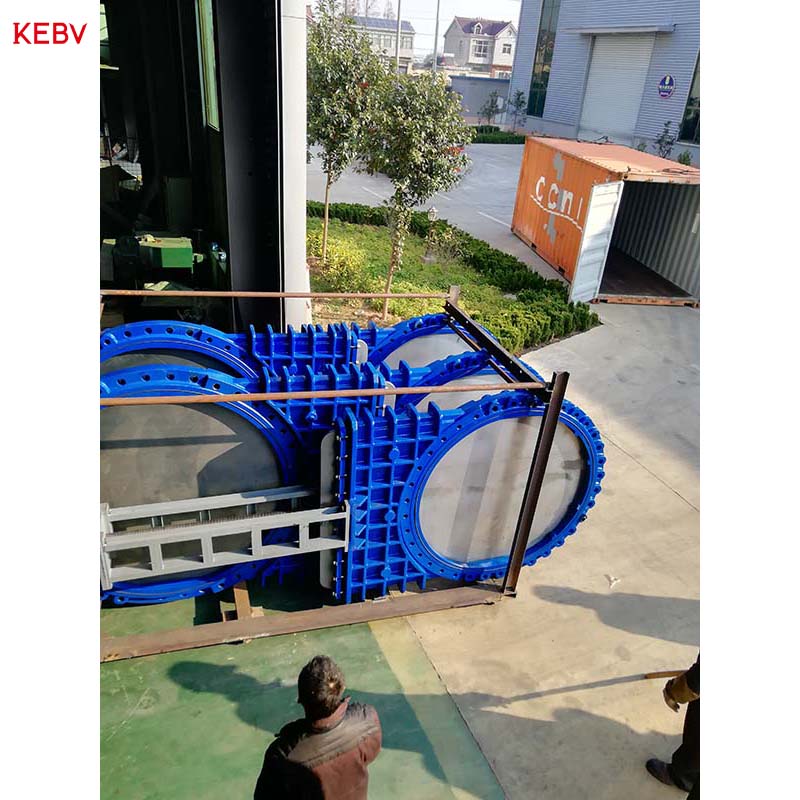

KEBV Bidirectional U-seal knife gate valve is designed for one-piece casting body and bi-directional sealing. The valve design can be changed for a two-part bolted body above DN600.
It can be installed without considering the flow direction and allows an end-of-line installation. The design of the body and seat assures non-clogging shut-off with suspended solids.
|
Technical Specifications of Bidirectional U-seal Knife Gate Valve |
|
|
Size Range |
DN 50~1600mm NPS 2”-64”(Large diameter on request) |
|
Design Options |
Bidirectional U type Seal; One piece casting body normally or Split bodies above DN600; Non-clogging shut-off. |
|
Body Material |
Ductile iron |
|
Knife Material |
SS304, SS304L, SS316, SS316L, SAF2205 or other requested |
|
Seat Material |
NBR：80°C EPDM: 120°C Viton/FKM: 180°C |
|
Applicable Standards |
Design & Manufacture: MSS SP-81 Face to Face: MSS SP-81 Flange connection: ASME B 16.5, EN1092-1, BS “D”/”E” (Other connections on customers’ request) Test: MSS SP-81 |
|
Operation Options |
Handwheel/Bevel Gear/Chain wheel Pneumatic/Electric actuator |
|
Applications |
Pulp & Paper / Water & Waster Water/Mining/Metallurgy /Petrochemical /Printing & Dying / Pharmacy/ Beverage& Food |
