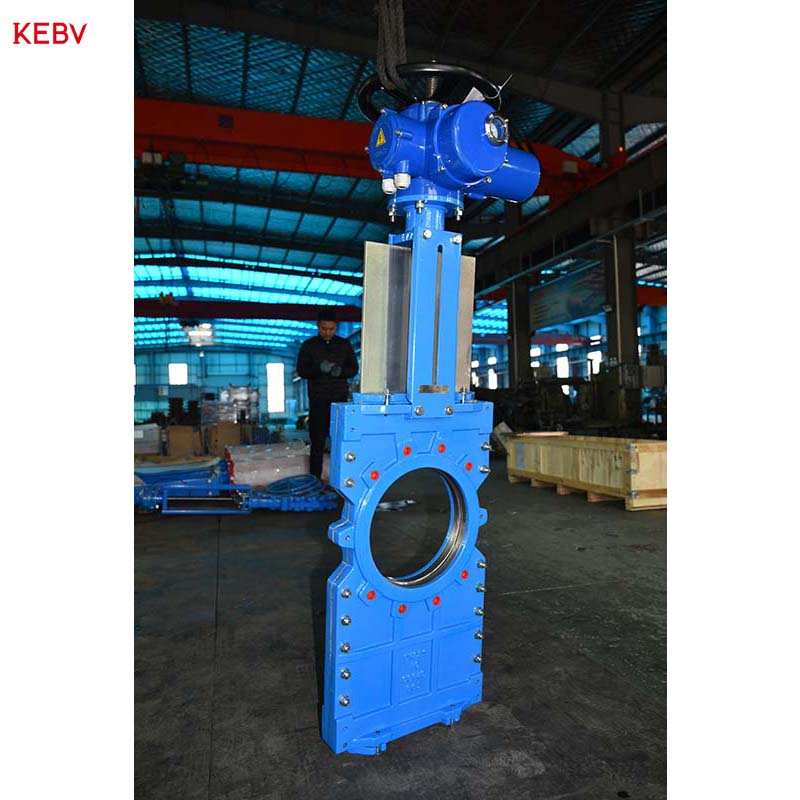

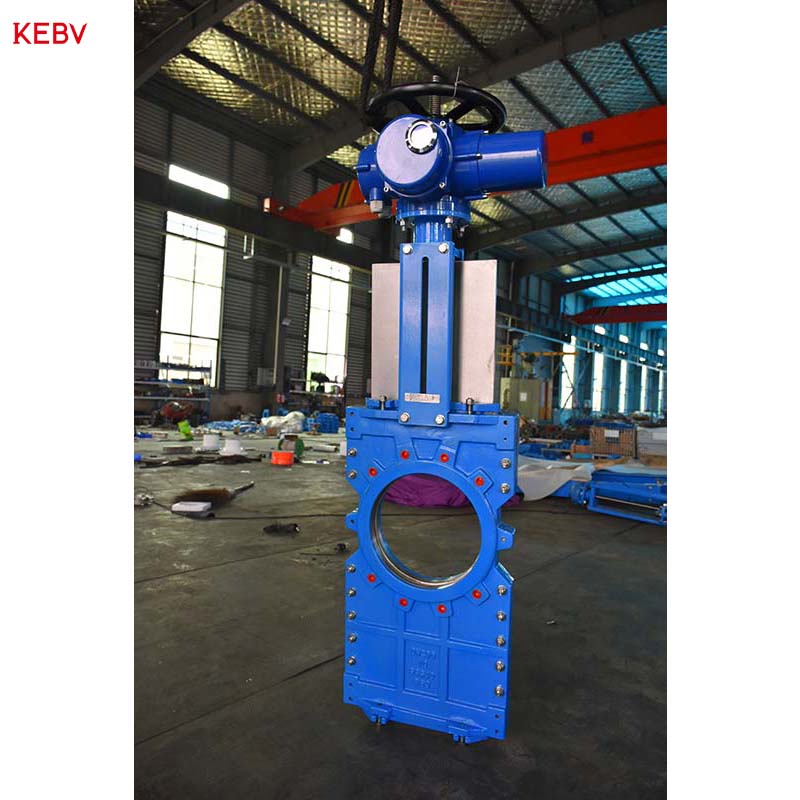

KEBV Through conduit knife gate valves are designed for two split bodies with double seat and for media with high consistency. The double seat design assures a non-clogging shut off on either normal or reverse flow. The gate slides through the full length of the body. When the valve is in open position, there are no dead corners in it and the valve becomes an extension of the pipe.
|
Technical Specifications of Through Conduit Knife Gate Valve |
|
|
Size Range |
DN 50~600mm NPS 2”-24”(Large diameter on request) |
|
Design Options |
Bidirectional Seal; Two split bodies; The gate slides through the full length of the body |
|
Body Material |
GGG40, GGG50, WCB, CF8, CF8M, CF3, CF3M etc. |
|
Knife Material |
SS304, SS304L, SS316, SS316L, SAF2205, SAF2507 or other requested |
|
Seat Material |
NR：70°C NBR：80°C EPDM: 120°C PTFE: 150°C Viton/FKM: 180°C Metal seat: SS304/316+Stellite ≥ 200°C |
|
Applicable Standards |
Design & Manufacture: MSS SP-81 Face to Face: MSS SP-81 Flange connection: ASME B 16.5, EN1092-1, AS2129 “D”/”E” (Other connections on customers’ request) Test: MSS SP-81 |
|
Operation Options |
Hand wheel/Bevel Gear Pneumatic/Hydraulic/Electric actuator |
|
Applications |
Pulp & Paper / Water & Waste Water/Mining/Metallurgy /Petrochemical /Printing & Dying /Pharmacy/ Beverage& Food |
