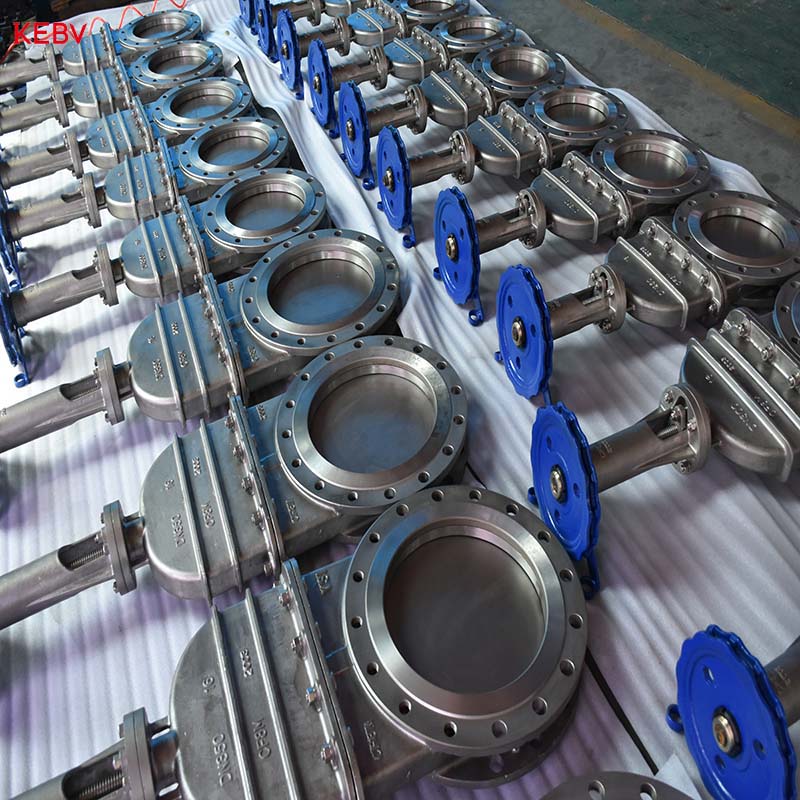

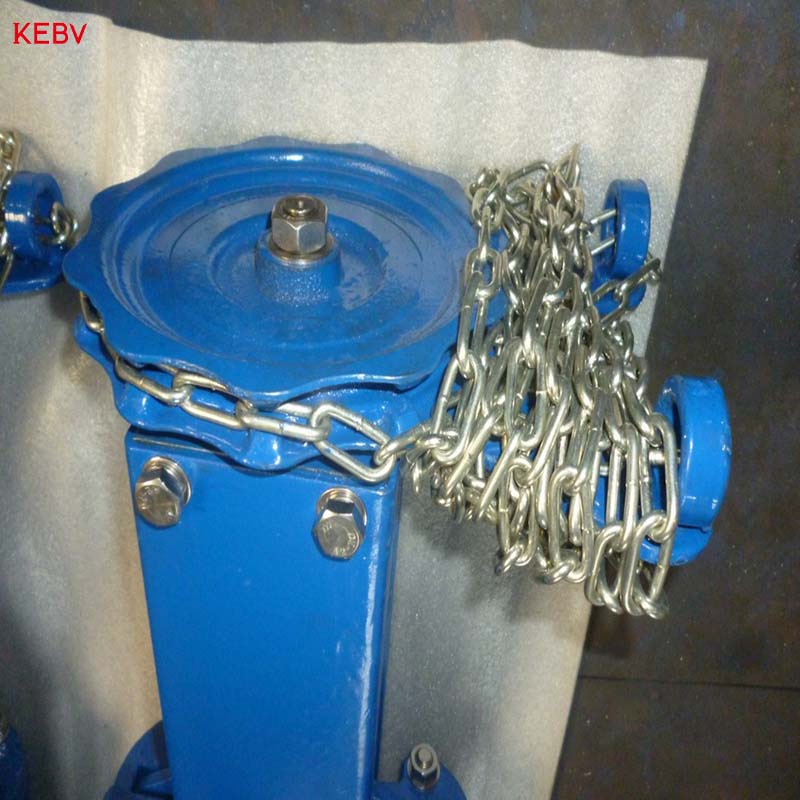

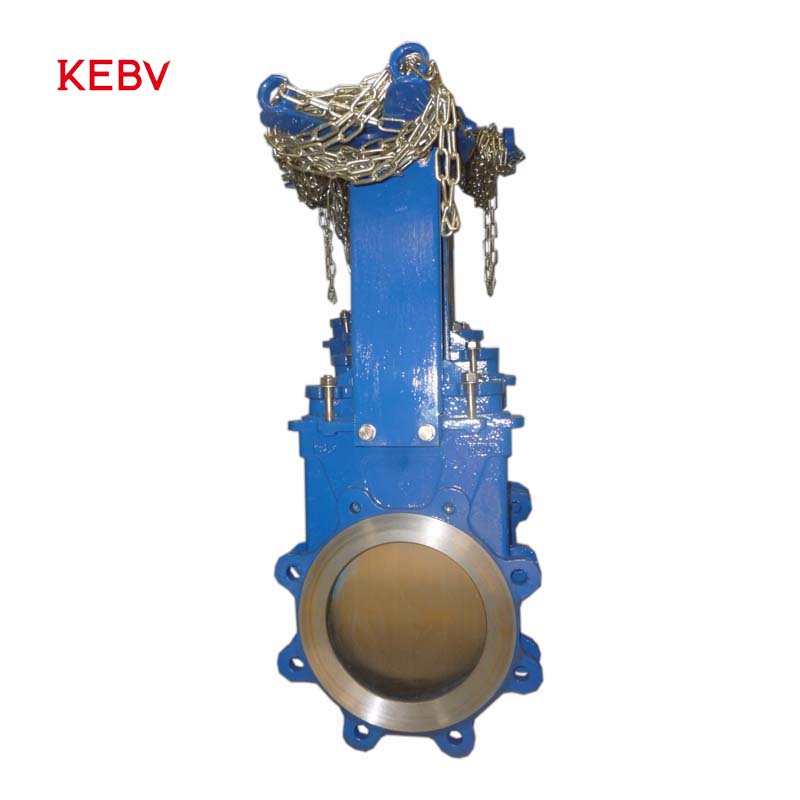

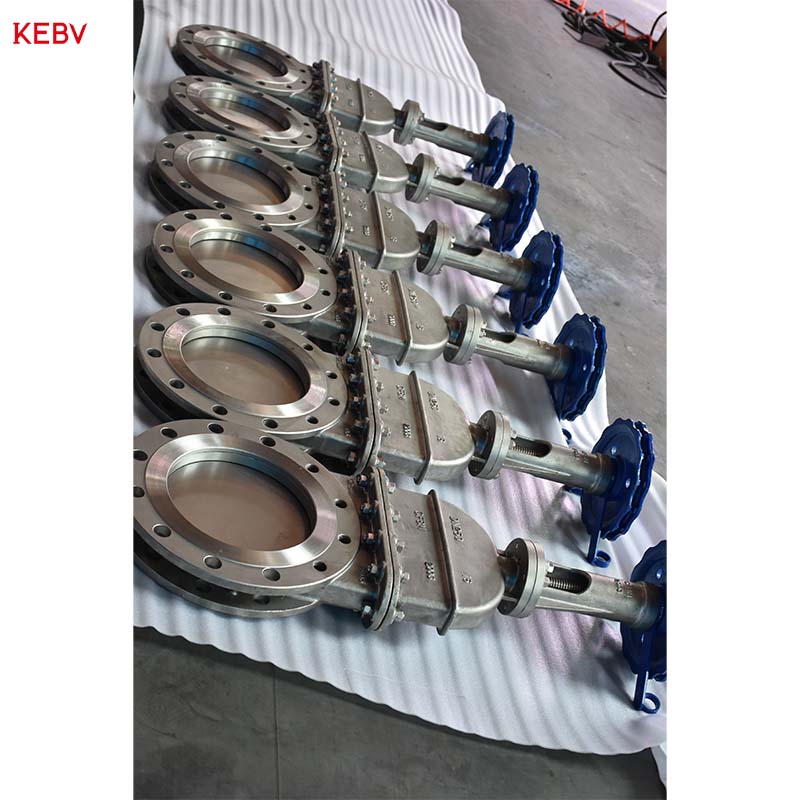

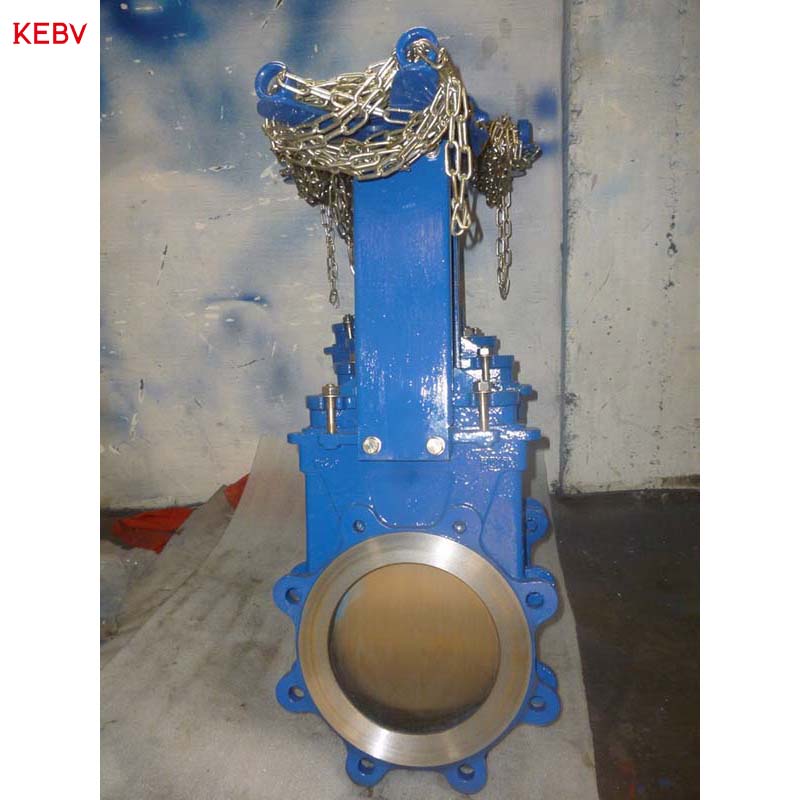

Chainwheel Knife Gate Valve

KEBV Chainwheel Knife Gate Valves are available in various designs, one-piece body and two-piece bodies, wafer, lug and flange connection, rising stem and non-rising stem, unidirectional and bidirectional seal, soft seat and metal seat, bonnetless and bolted bonnet designs.

Place of Origin: China
Brand Name: KEBV (OEM available)
Model Number: 1.50
Certification: PED/CE, API6D, ISO9001
Minimum Order Quantity: 1 PC
Warranty Period 12 months
Packaging Details: Plywood Case
Delivery Time: 30 days After receiving deposit
Payment Terms: T/T, LC at sight
Supply Ability: 150-200 PCS/Month

Product Description

KEBV Chainwheel Knife Gate Valves are available in various designs, one-piece body and two-piece bodies, wafer, lug and flange connection, rising stem and non-rising stem,

unidirectional and bidirectional seal, soft seat and metal seat, bonnetless and bolted bonnet designs.

Technical Specifications of Chain wheel Knife Gate Valve
Size Range	DN 50~600mm NPS 2”-24”(Large diameter on request)
Design Options	Unidirectional Seal; Rising Stem
Body Material	Carbon steel, CF8, CF8M, CF3, CF3M, A890 4A, A890 5A etc.
Knife Material	SS304, SS304L, SS316, SS316L, SAF2205, SAF2507 or other requested
Seat Material	NR：70°C NBR：80°C EPDM: 120°C PTFE: 150°C Viton/FKM: 180°C Metal seat: SS304/316+Stellite ≥ 200°C
Applicable Standards	Design & Manufacture: MSS SP-81 Face to Face: MSS SP-81 Flange connection: ASME B 16.5, EN1092-1, BS “D”/”E” (Other connections on customers’ request) Test: MSS SP-81
Operation Options	Lever/Handwheel/Bevel Gear/Chainwheel Pneumatic/Hydraulic/Electric actuator
Applications	Pulp & Paper / Water & Waster Water/Mining/Metallurgy /Petrochemical /Printing & Dying / Pharmacy/ Beverage& Food
