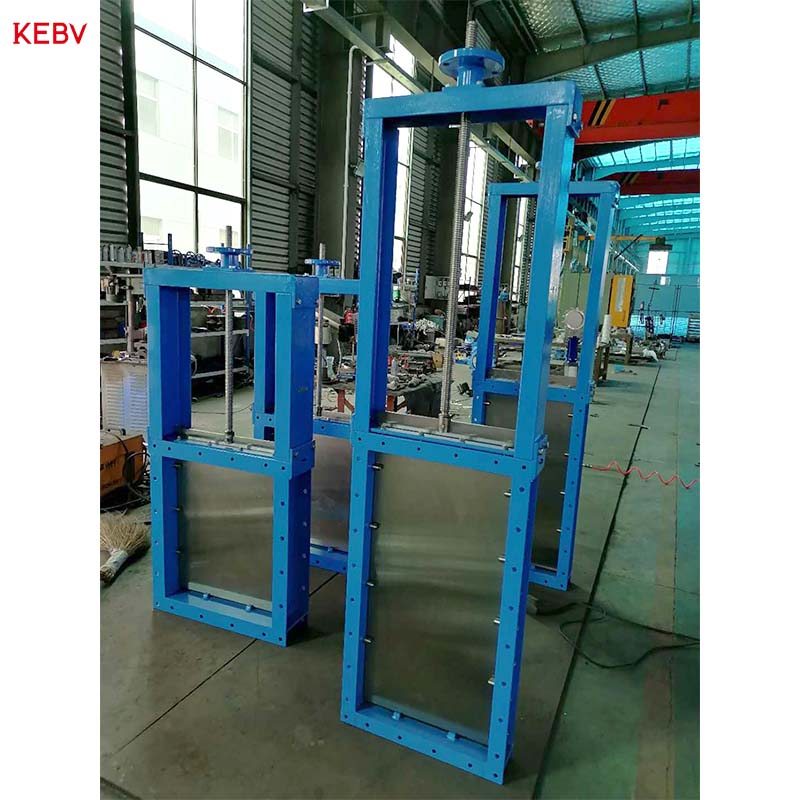

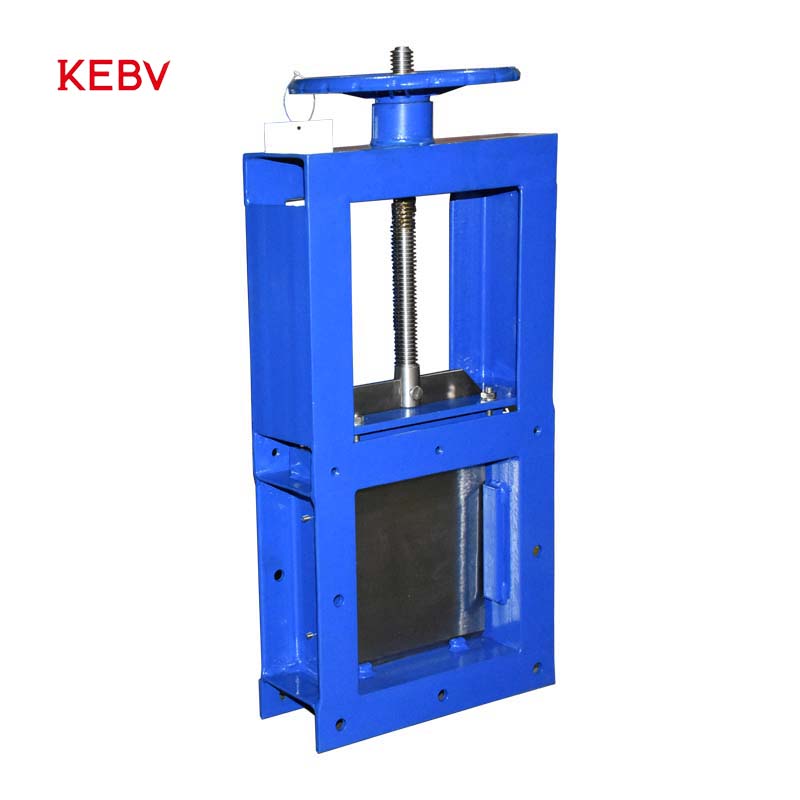

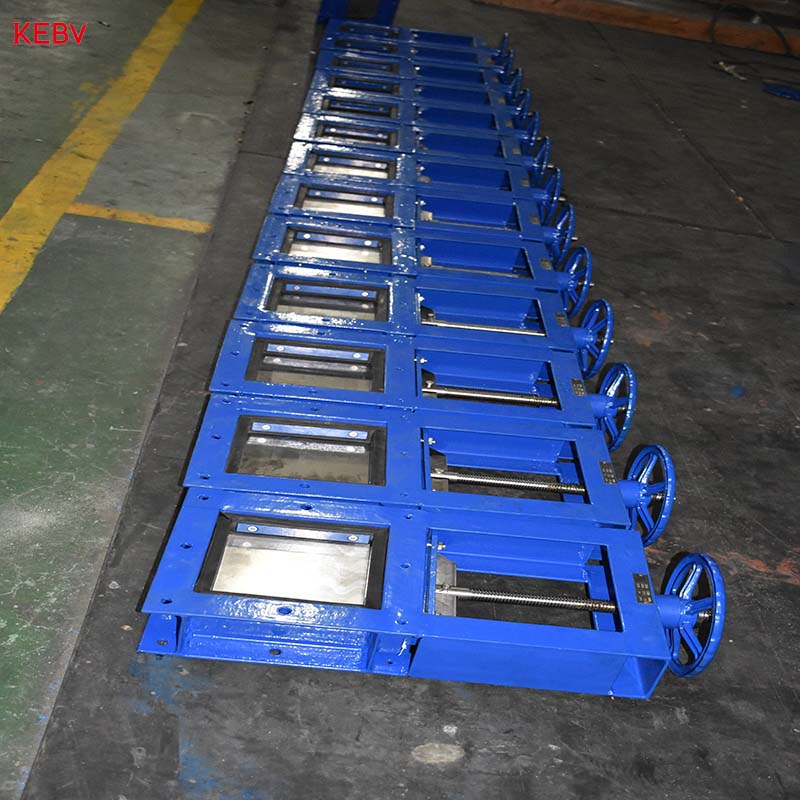

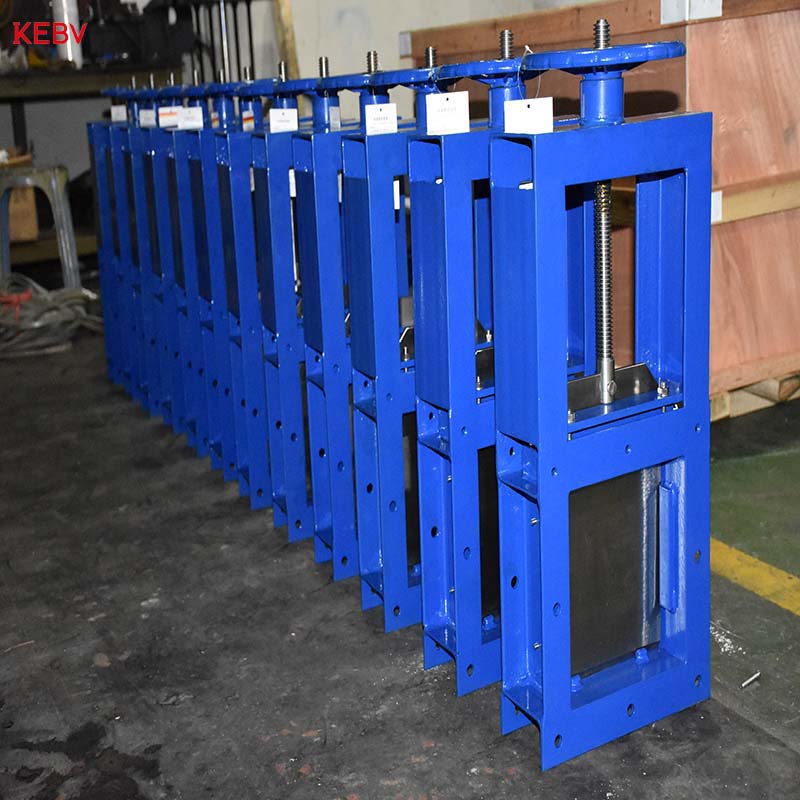

Home ProductsSlide Gate Valve(Sluice Valve)
KEBV Slide Gate Valve also called Sluice Valve is used to close and open the control system of the drain (discharge) water channel. It also can be used to intercept water flow, control water level,
regulate flow, discharge sediment and floating objects, etc. It is widely used in sewage sludge treatment, chemical industry, coal mining, paper industry, sugar industry, etc.
|
Technical Specifications of Carbon Steel Slide Gate Valve(Sluice Valve) |
|
|
Size Range |
DN 50~1200mm NPS 2”-48”(Large diameter on request) |
|
Design Options |
Unidirectional or Bidirectional Seal; Rising Stem or Non-rising stem |
|
Body Material |
Carbon steel (Epoxy coating available) |
|
Knife Material |
SS304, SS304L, SS316, SS316L, SAF2205, SAF2507 or other requested |
|
Seat Material |
NR：70°C NBR：80°C EPDM: 120°C PTFE: 150°C Viton/FKM: 180°C Metal seat: SS304/316+Stellite ≥ 200°C |
|
Applicable Standards |
Design & Manufacture: MSS SP-81 Face to Face: MSS SP-81 Flange connection: ASME B 16.5, EN1092-1, BS “D”/”E” (Other connections on customers’ request) Test: MSS SP-81 |
|
Operation Options |

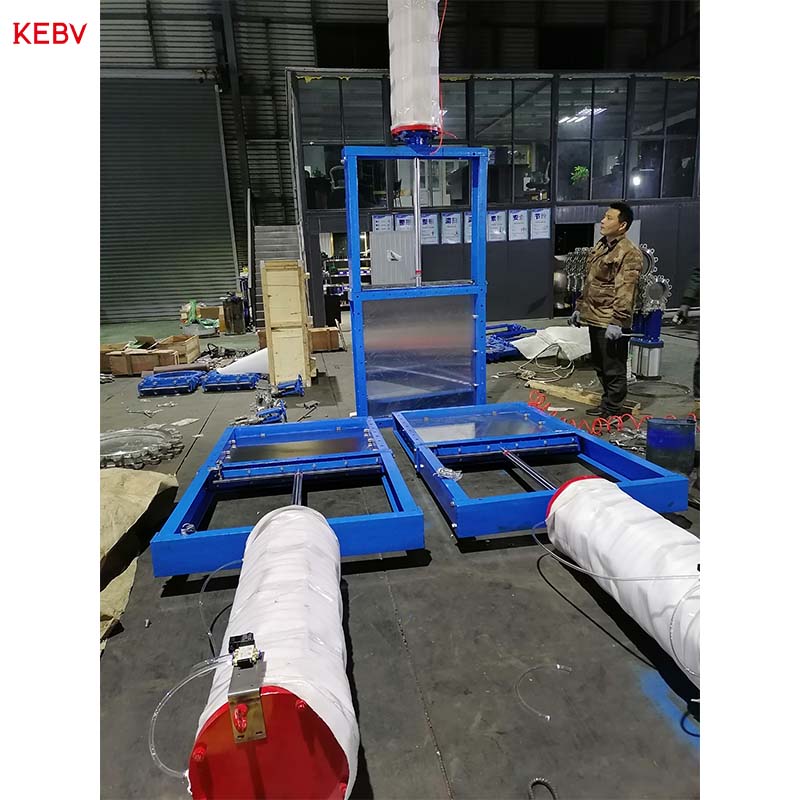

Lever/Handwheel/Bevel Gear/Chainwheel Pneumatic/Hydraulic/Electric actuator |
|
Applications |
Pulp & Paper / Water & Waste Water/Mining/Metallurgy /Petrochemical /Printing & Dying / Pharmacy/ Beverage& Food |
