Flanged Knife Gate Valve

Home ProductsFlanged Knife Gate Valve

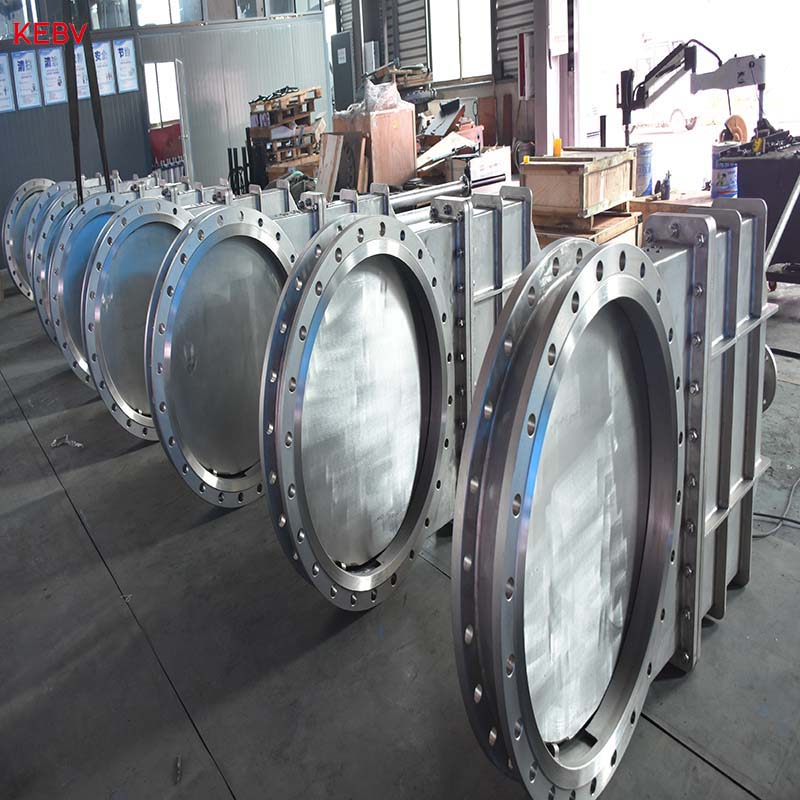

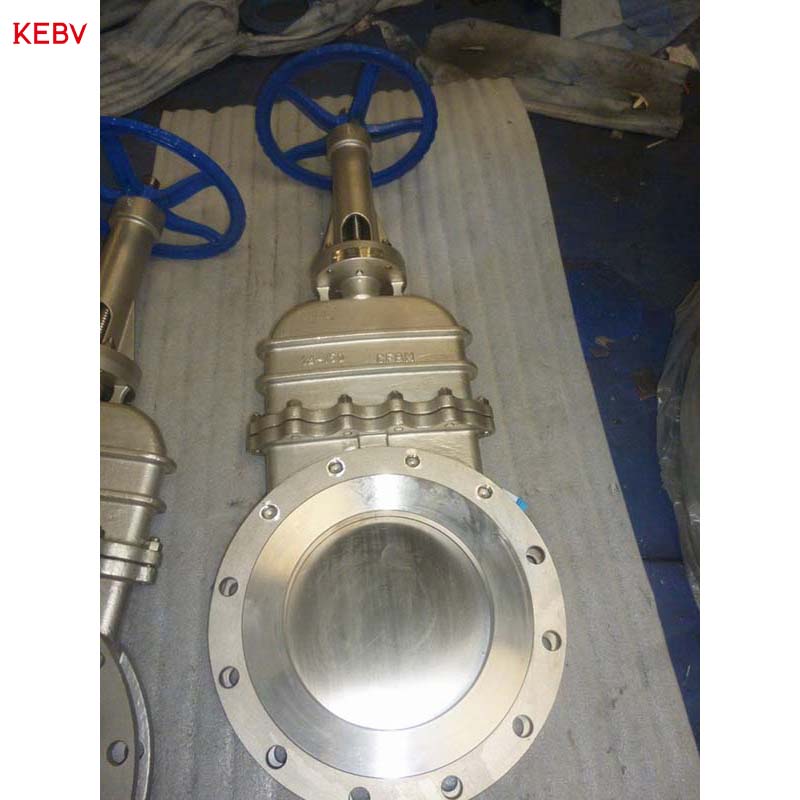

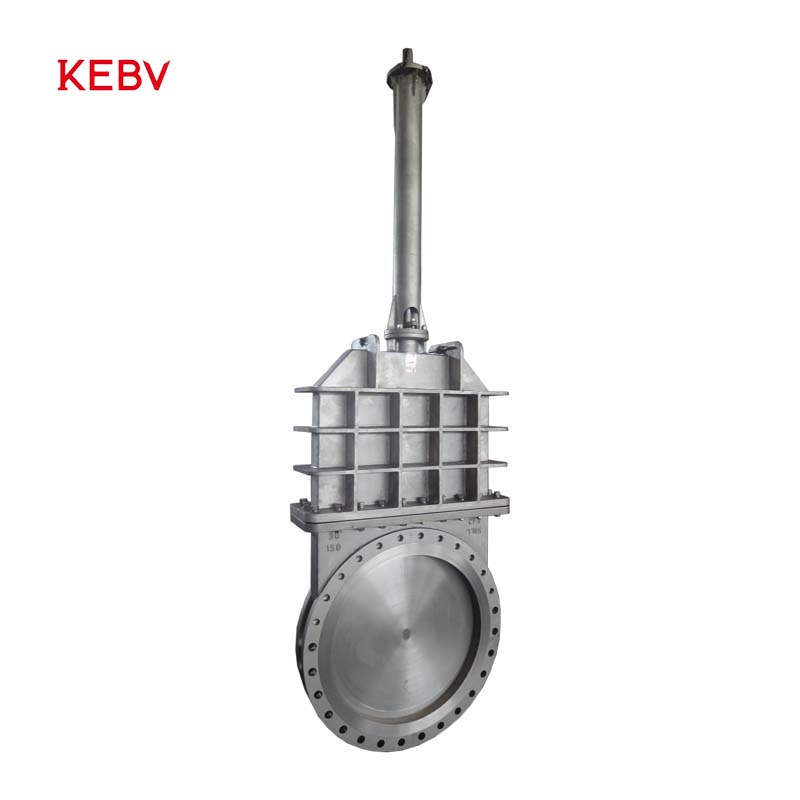

Bolted Bonnet Flanged Knife Gate Valve

KEBV knife gate valves are available in various designs, one-piece body and two-piece bodies, wafer, lug and flange connection, rising stem and non-rising stem, unidirectional and bidirectional seal, soft seat and metal seat, bonnetless and bolted bonnet designs.

Place of Origin: China
Brand Name: KEBV (OEM available)
Model Number: 1.32
Certification: PED/CE, API6D, ISO9001


Minimum Order Quantity: 1 PC
Warranty Period 12 months
Packaging Details: Plywood Case
Delivery Time: 30 days After receiving deposit
Payment Terms: T/T, LC at sight
Supply Ability: 150-200 PCS/Month

Product Description

KEBV knife gate valves are available in various designs, one-piece body and two-piece bodies, wafer, lug and flange connection, rising stem and non-rising stem,

unidirectional and bidirectional seal, soft seat and metal seat, bonnetless and bolted bonnet designs.

Technical Specifications of Bolted Bonnet Flanged Knife Gate Valve

Size Range

DN 50~1200mm  NPS 2”-48”(Large diameter on request)

Design Options

Unidirectional or Bidirectional Seal;

Rising Stem or Non-rising Stem

Body Material

WCB, CF8, CF8M, CF3, CF3M, A890 4A, A890 5A etc.

Knife Material

SS304, SS304L, SS316, SS316L, SAF2205, SAF2507

or other requested

Seat Material

NR70°C  NBR80°C    EPDM: 120°C   PTFE: 150°C

Viton/FKM: 180°C   Metal seat: SS304/316+Stellite 200°C

Applicable Standards

Design & Manufacture: MSS SP-81

Face to Face: MSS SP-81/ EN558-1 Series 20

Flange connection: ASME B 16.5, EN1092-1, BS D/E

(Other connections on customers’ request)

Test: MSS SP-81

Operation

Options

Lever/Handwheel/Bevel Gear/Chainwheel

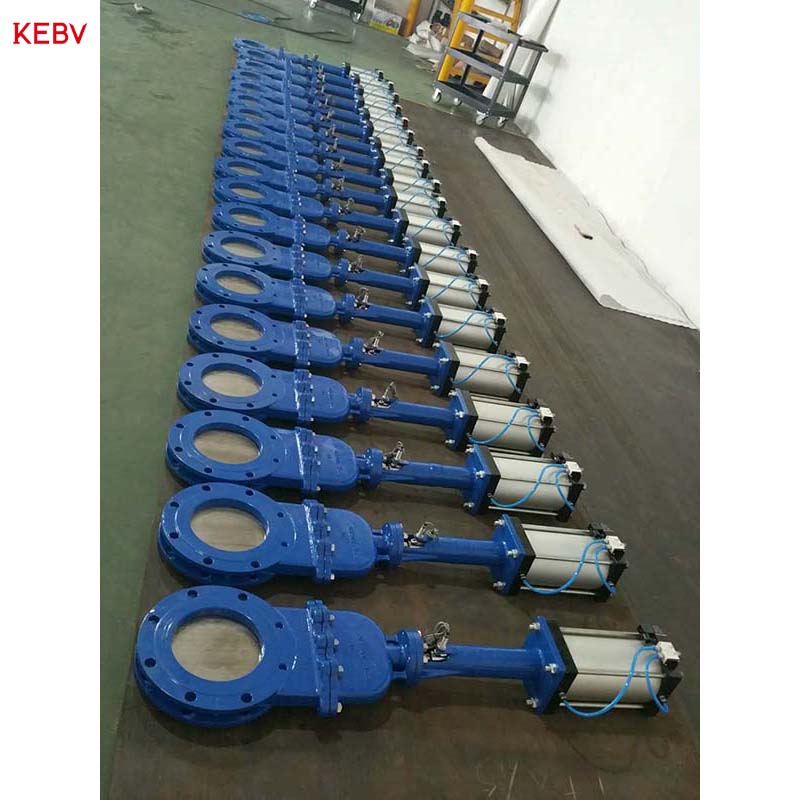

Pneumatic/Hydraulic/Electric actuator

Applications

Pulp & Paper / Water & Waste Water/Mining/Metallurgy

/Petrochemical /Printing & Dying / Pharmacy/ Beverage& Food
